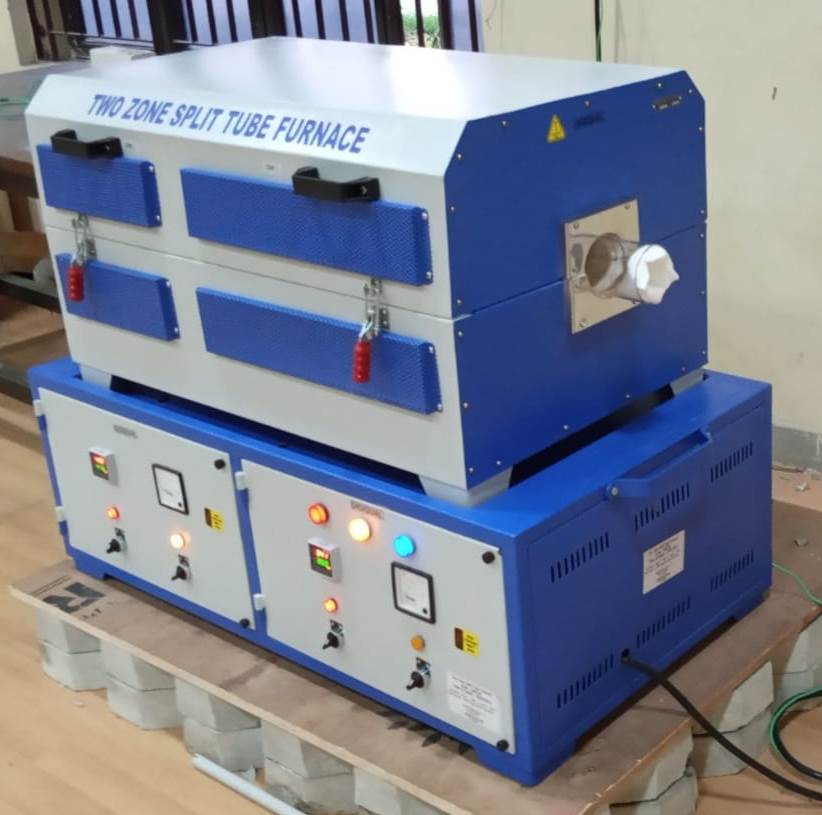

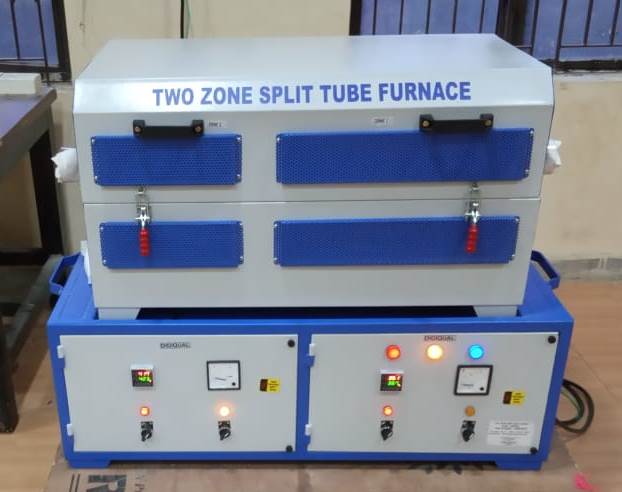

Horizontal Split Furnace

DSC00917

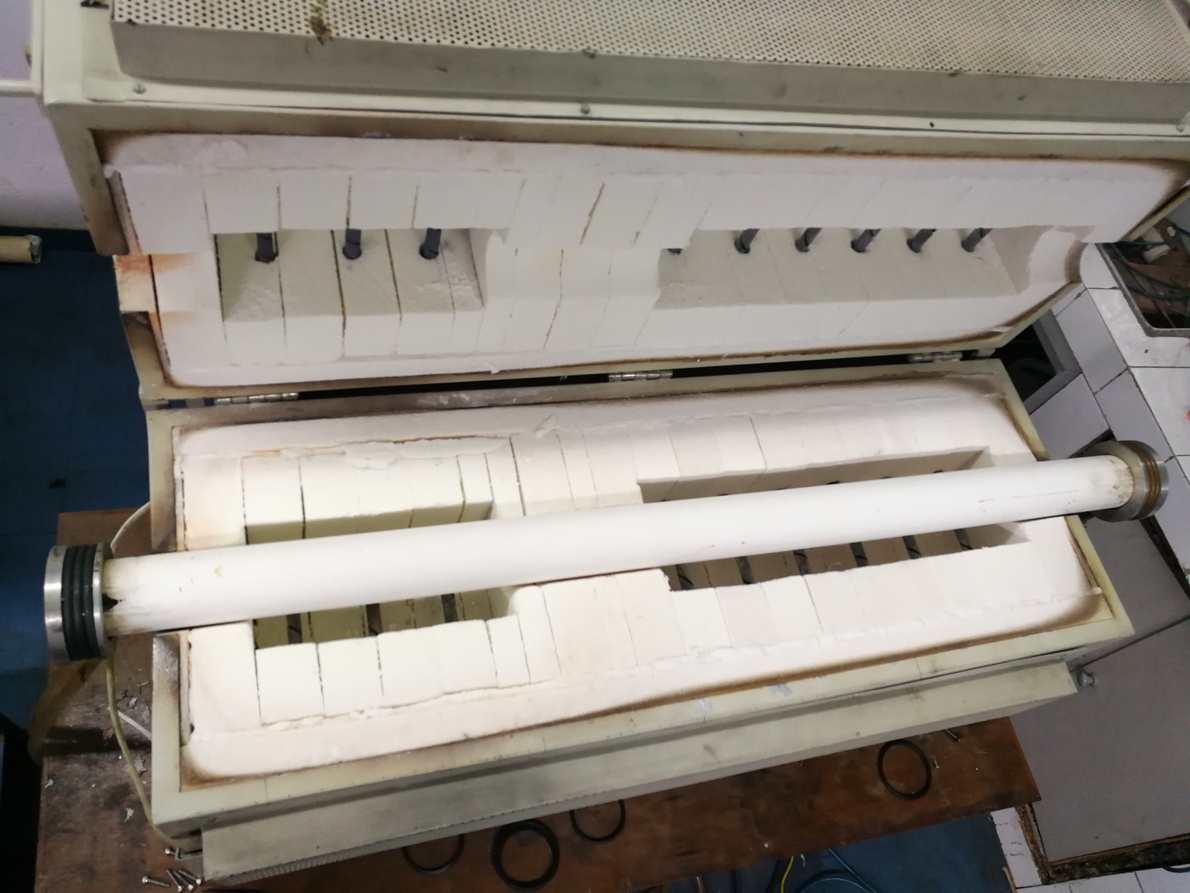

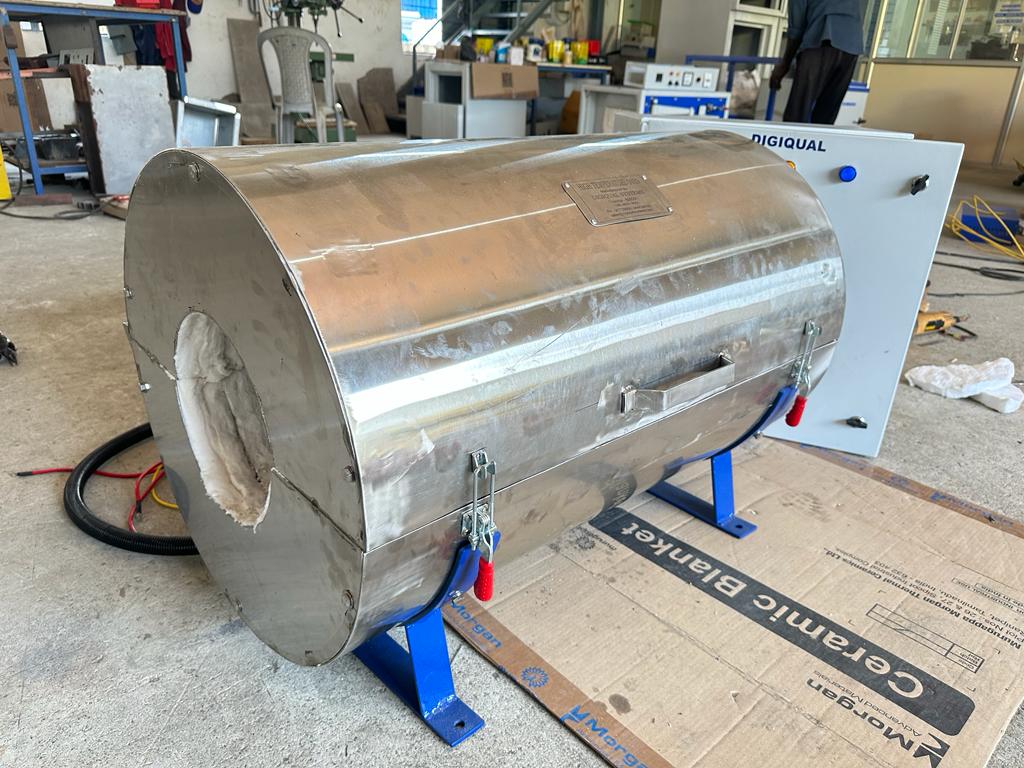

Digiqual Systems Manufacturers Horizontal Split Type Furnace in Different Dimensions & Temp Range up to 1400 * C. Outer Casing Fabrication Made out of SS 304 , 2mm Sheaths & of Double chamber . In Horizontal Split Type Furnace Outer Chamber for Air Gap & to reduce Skin Temperature. In Horizontal Split Type Furnace Furnace Tube is of High Quality Alumina Ceramic Tube.

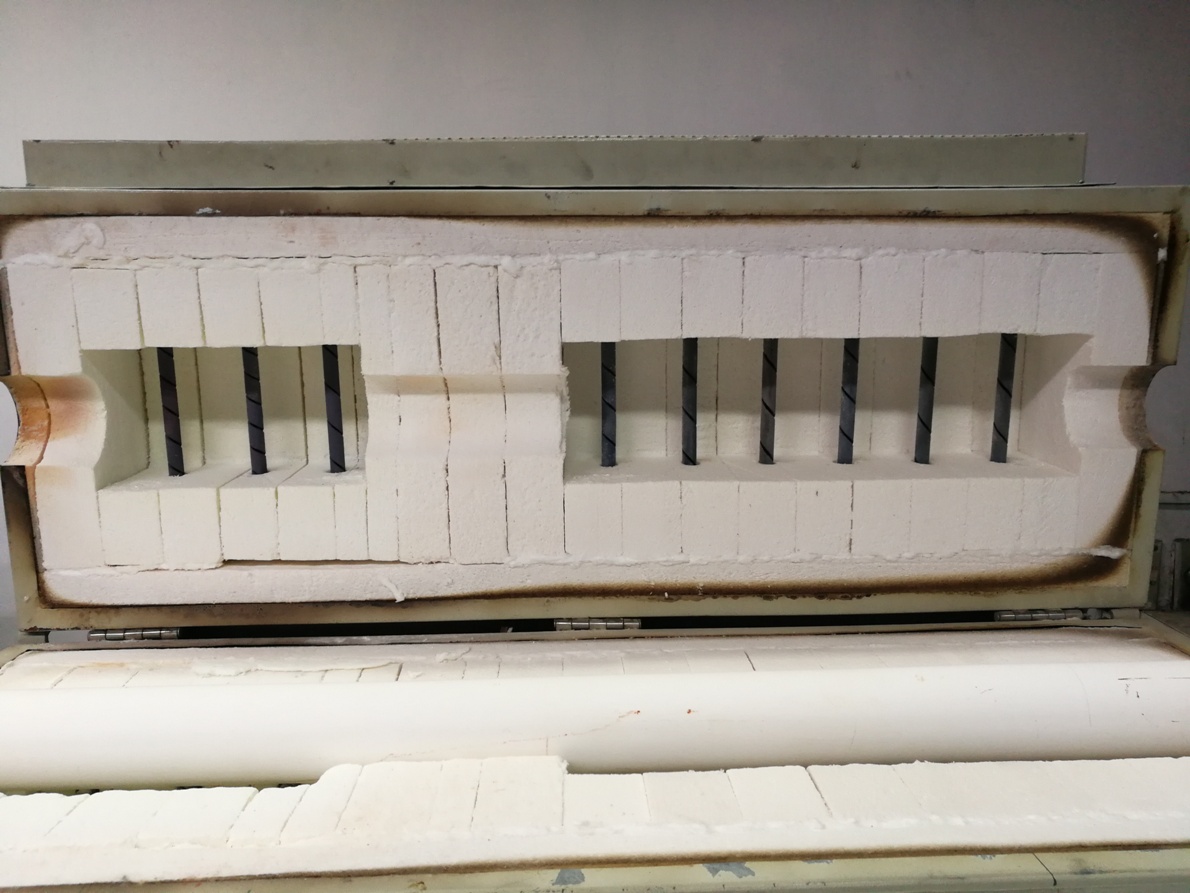

In Horizontal Split Type Furnace Heating Elements are Kanthal A1 & Silicon Carbide.

Technical Specification
Operating Temperature range : 600-1000 °C
Max. Temperature : 1100* C
Temp Accuracy : +/- 1* C.
Operating Voltage : 230 volts, Single Phase

Optional :

  • Microprocessor Based Programmable Temperature
  • Controller with Thyristor Output for Better Accuracy.
  • End Fittings for Inert Atmosphere Purging
  • Quartz Tube with End Fittings.
Inner Dimensions Temp Range Temp Range
75 mm Dia x 300 mm Length 1100 * C 1400 * C
110 mm Dia x 300 mm Length 1100 * C 1400 * C
150mm Dia x 300 mm Length 1100 * C 1400 * C
