Industrial Oven – Box Type

Industrial Oven

DIGIQUAL SYSTEMS Manufacturers Industrial Box Type Oven , Industrial Ovens. Heavy Duty Small Batch or Industrial oven is designed for heavy-duty applications and is offered in Many standard sizes. Each of these units are available in two (2) standard continuous maximum temperature ratings 400 * C. Custom sized ovens are available upon request.

The Digiqual Industrial Oven can be an ideal Bigger Industrial oven for applications which require aggressive heat-up rates and tight temperature uniformity tolerances throughout the entire work chamber. These Bigger Industrial ovens are also a good choice for processes which have long dwell times or high volume production requirements. It has unequalled air volume and heat input. As a standard, It utilizes electric heating elements to heat the recirculated air. Some of the larger sized Digiqual Oven can be modified to be heated with a Natural or Propane gas burner at an additional cost.

Enquire Now

Category:
Share:

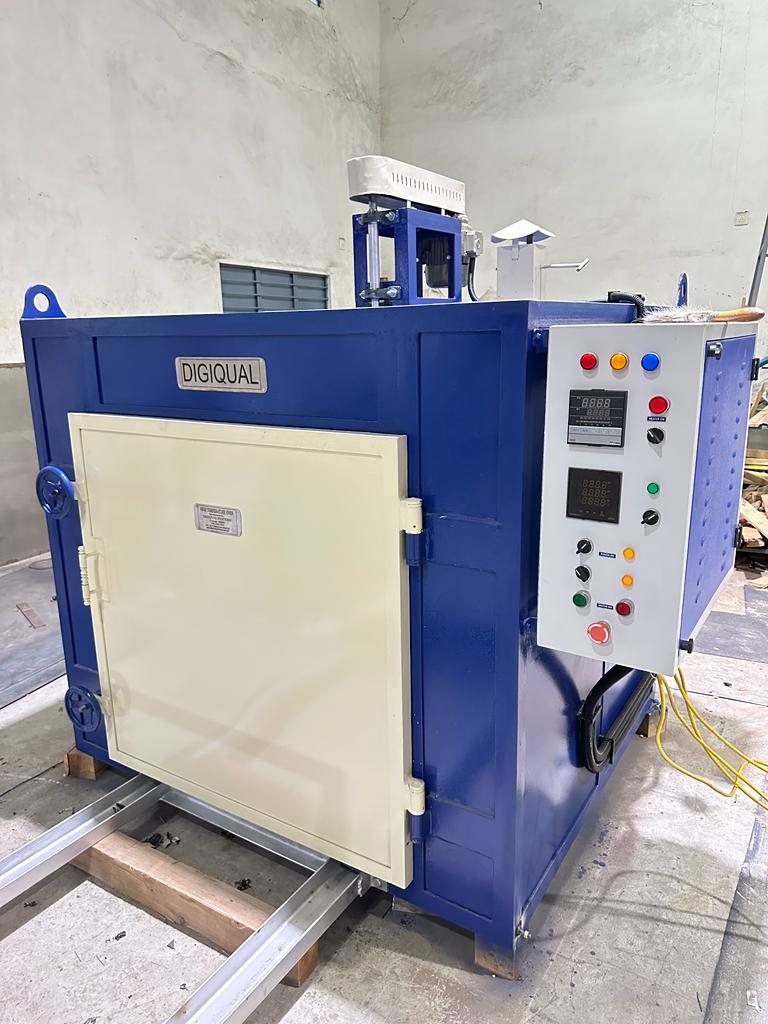

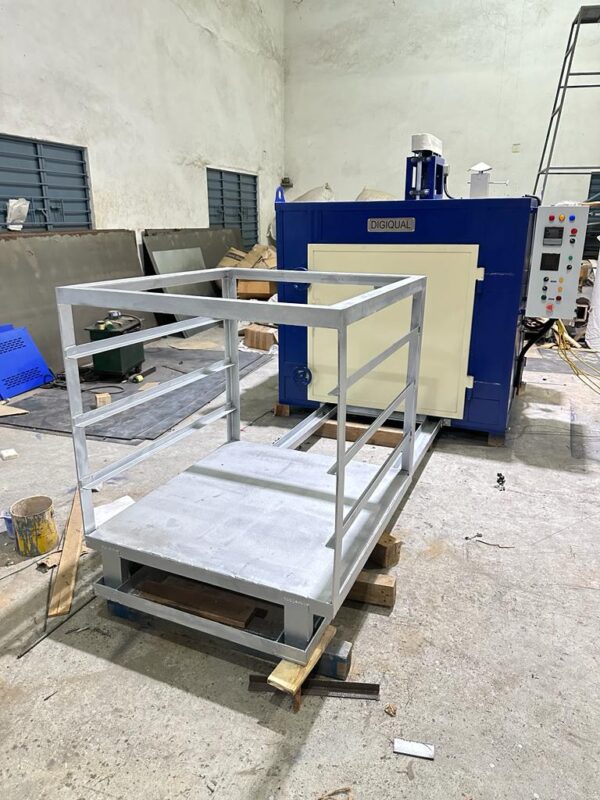

The Digiqual Industrial Box Type Oven is an industrial oven with an integral insulated floor, a floor stand, and a structural rack and shelf assembly. Shelves are removable, but are not designed to be pulled in or out during normal operation as a drawer. The air is introduced into the work chamber through adjustable ductwork, in either a horizontal air flow design, or combination.
Sl.No Inner Dimensions Wattage Max Temperature
1. 750 x 750 x 750 mm. 3 KW 250°C
2. 1000 x 1000 x 1000 mm. 9 KW 250°C
3. 1250 x 1250 x 1250 mm 15 KW 250°C
4. 1500 x 1500 x 1500 mm 20 KW 250°C
5. 2000 x 2000 x 2000 mm. 25 KW 250°C
