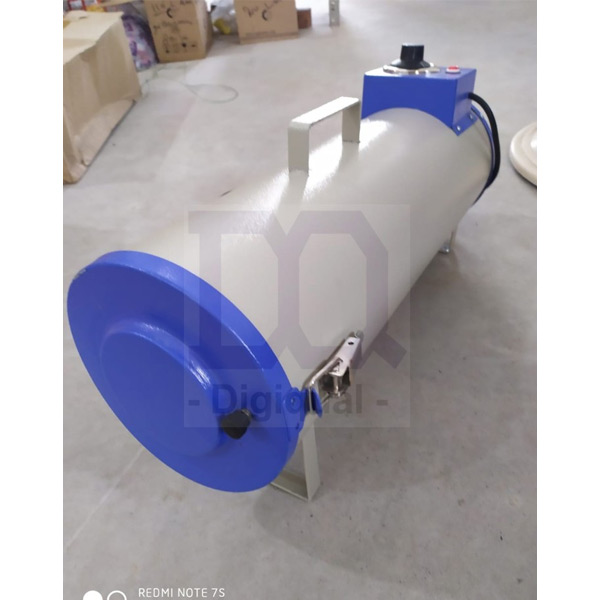

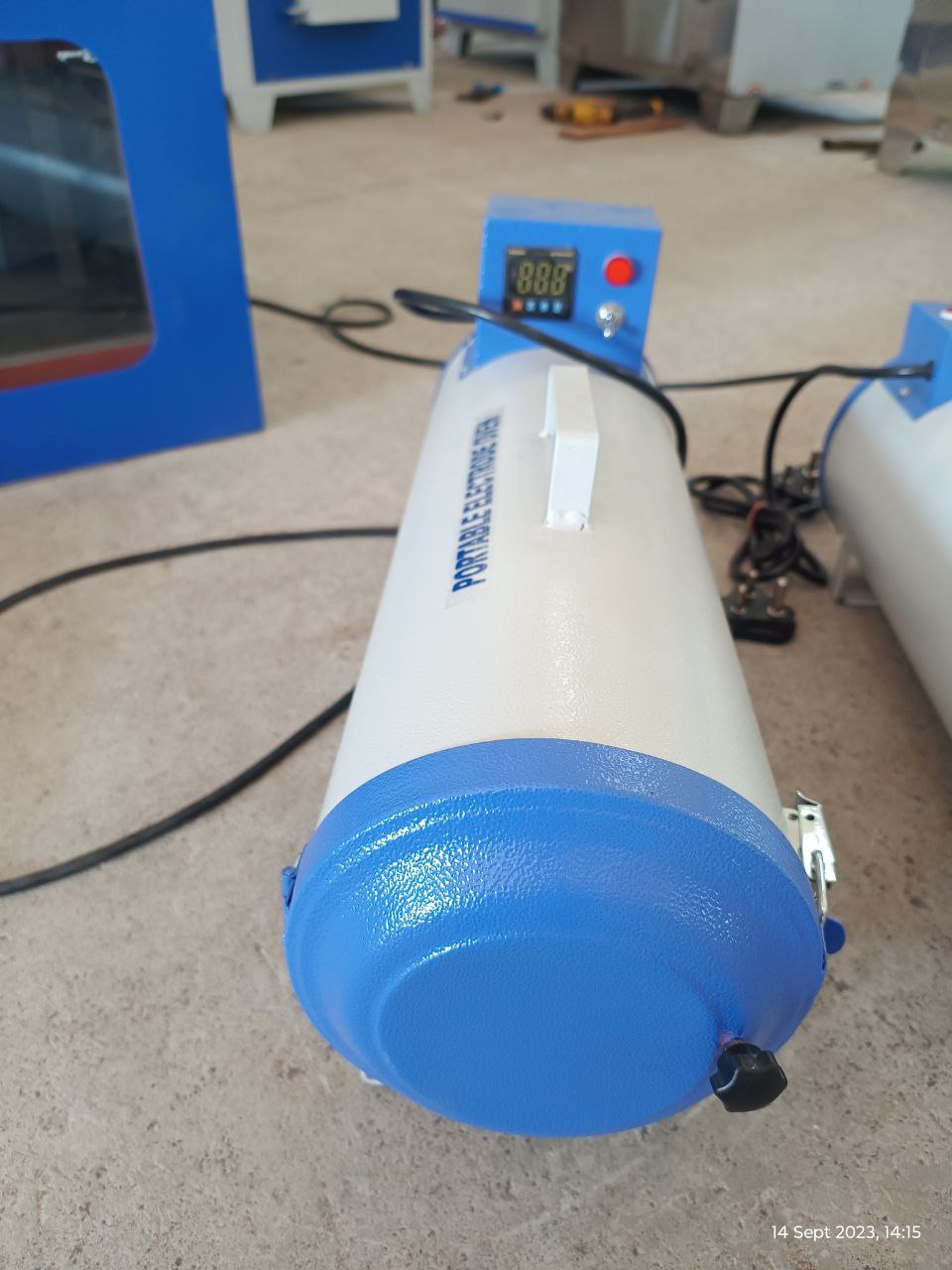

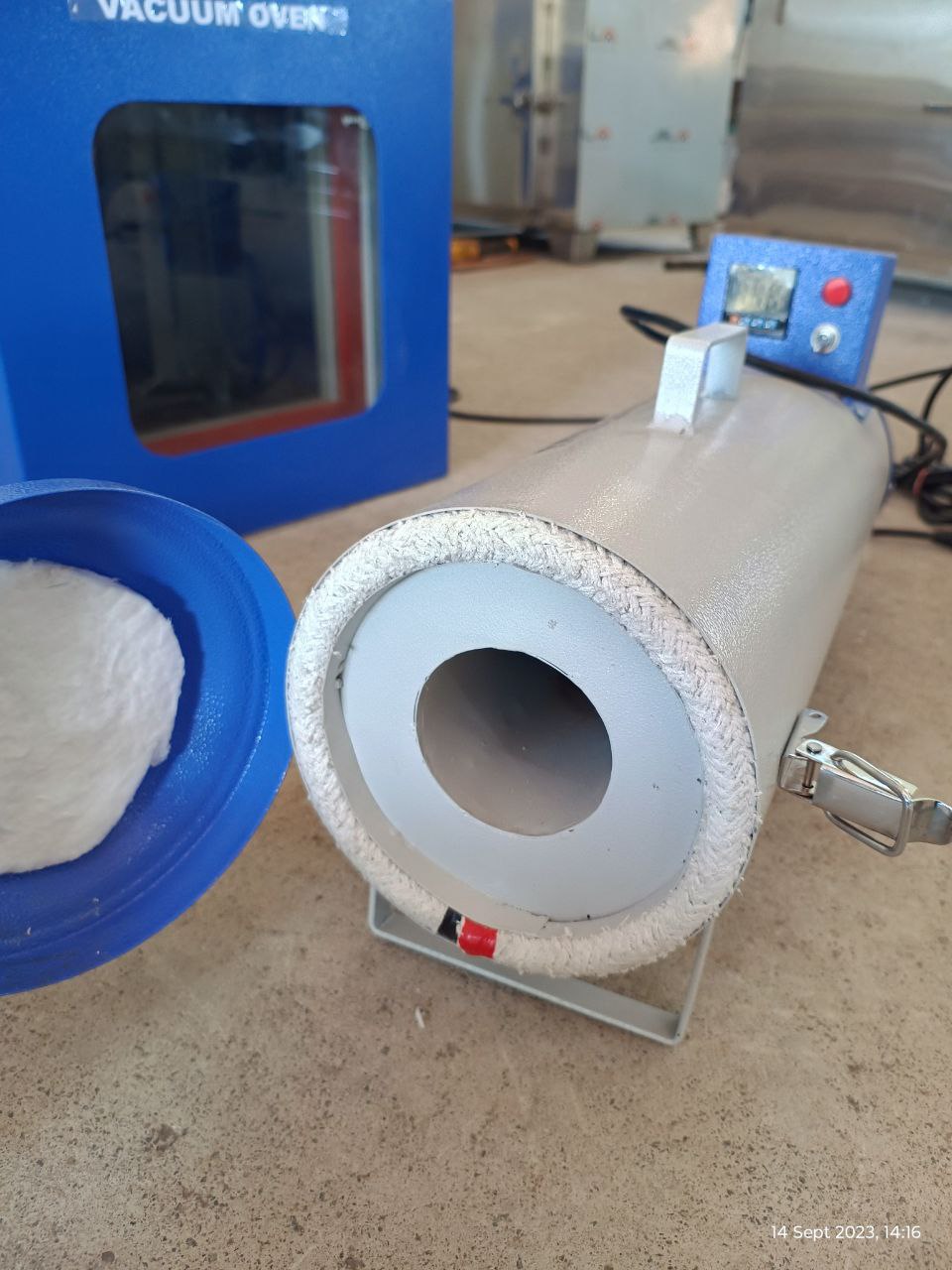

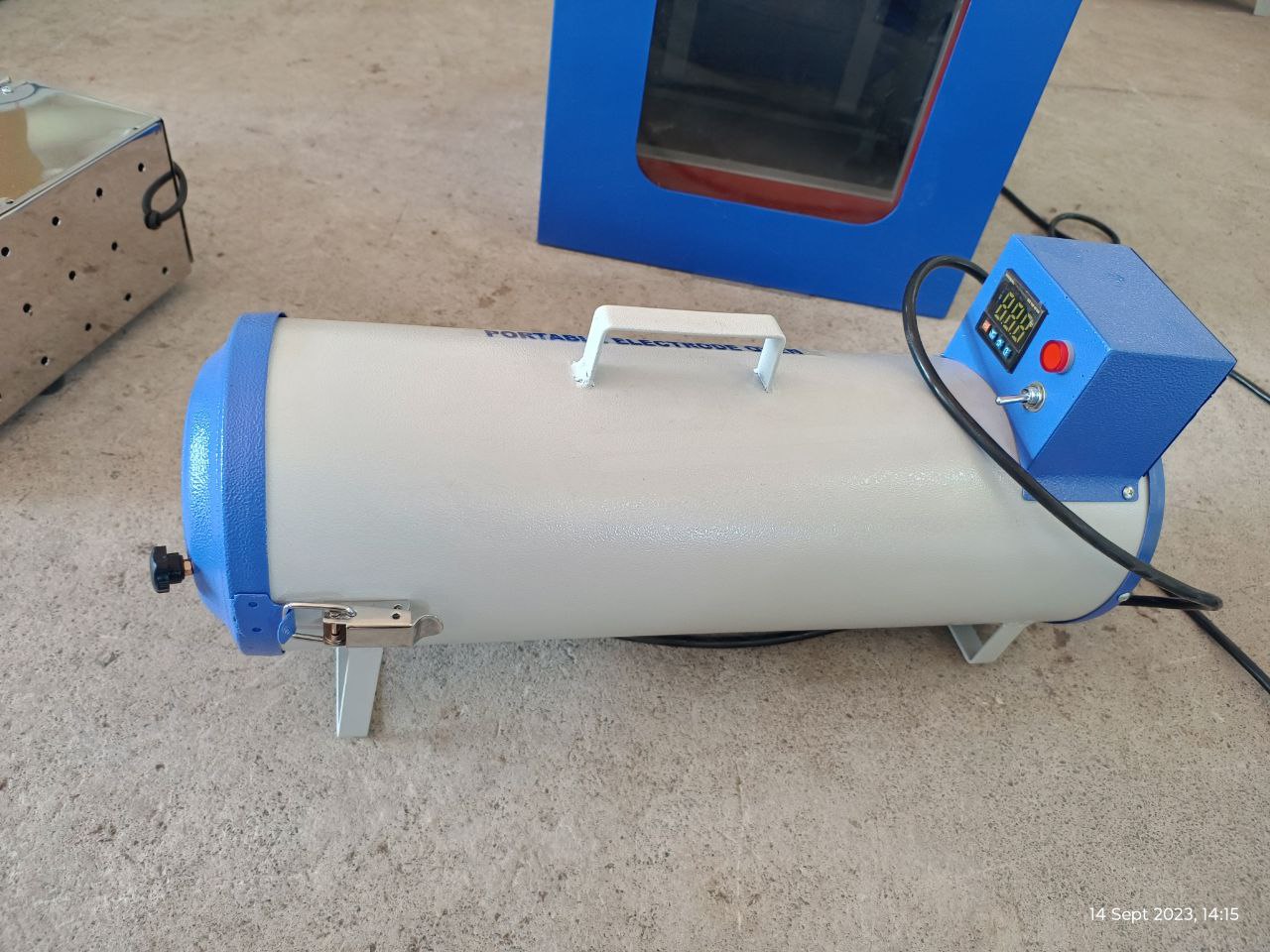

Portable Welding Rod Drying Oven
DIGIQUAL Manufacturers Portable Welding Electrode Drying Oven which is also called Quiver ovens. Portable Electrode Ovens means a oven which is Used to Carry different locations for Drying Welding Electrodes. It is used to preheat the electrode after opening it from box. Like low hydrogen electrode it required 250-300 Deg C for re baking atleast for 1 hour before it use. Temperature and heating time may vary from electrode to electrode
Max Temp : 250 * C
Heater Control : Thermostat or Digital PID Controller.
Available in 2 Options of Outer Body
* Mild Steel Powder Coated
* Fully Stainless Steel.
| Technical Specification | ||
|---|---|---|
| Model No | DQ-PWO-01 | |
| Electrode capacity | 5Kgs | |
| Max electrode size | 18 Inches {457 mm} | |
| Voltage | 220 V AC & 80 V DC | |
| Wattage | 1000 watts | |
| Supply cable | 2 Mtr Long C | |
| Temperature range | Max 250 Deg C | |
| Heater Control | Thermostat | |
| Temperature controller | Optional | |
| Heating element | Catridge Heater | |
| Insulation | 25 mm Ceramic Wool | |
| Inner Chamber {mm} | 85mm (Dia) x 480mm(Depth) | |
| Inner basket | Yes | |
| Body | Pre galvanized steel sheet (Powder Coated) | |
| Light indicator | Yes | |
| Color outer side | Power Coating | |
| Color inner side | Heat resistant aluminium paint | |
| Shape | Cylindrical | |
| Handle | Fix Handle | |
| Net Weight | 10 Kg | |
