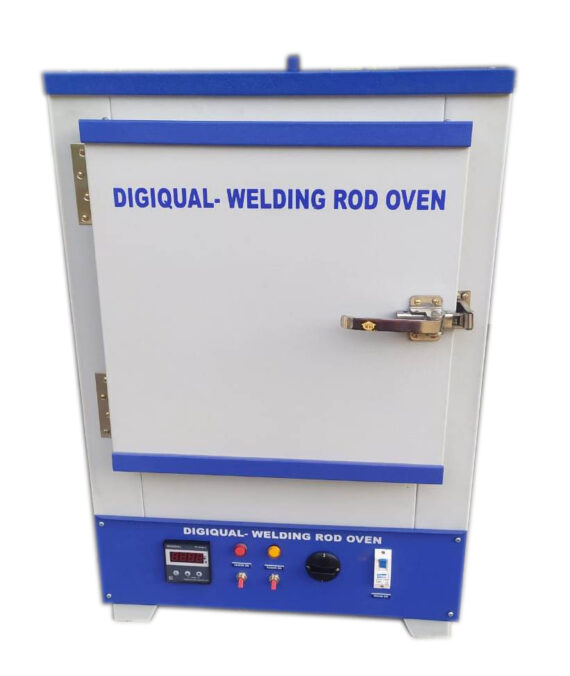

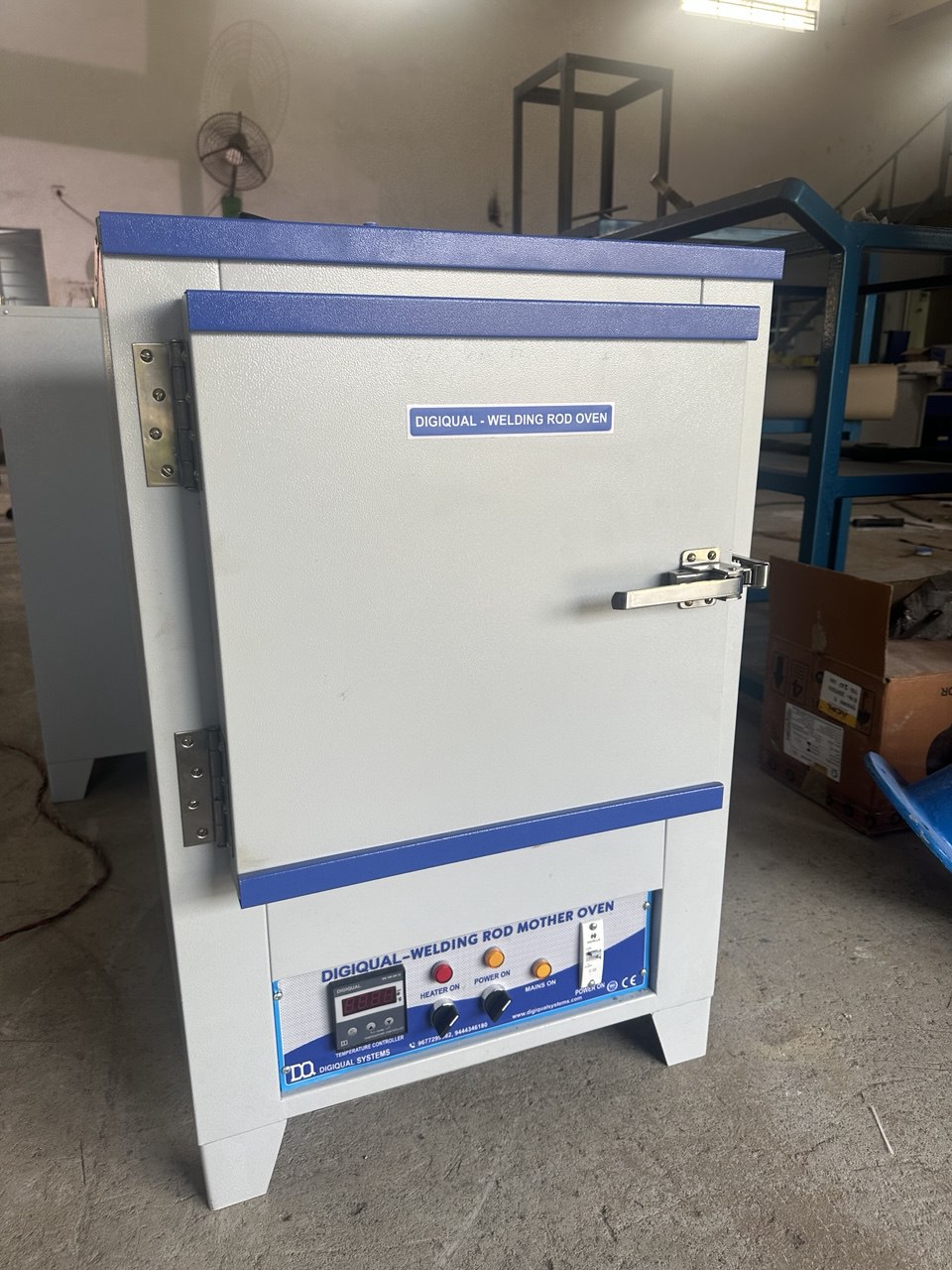

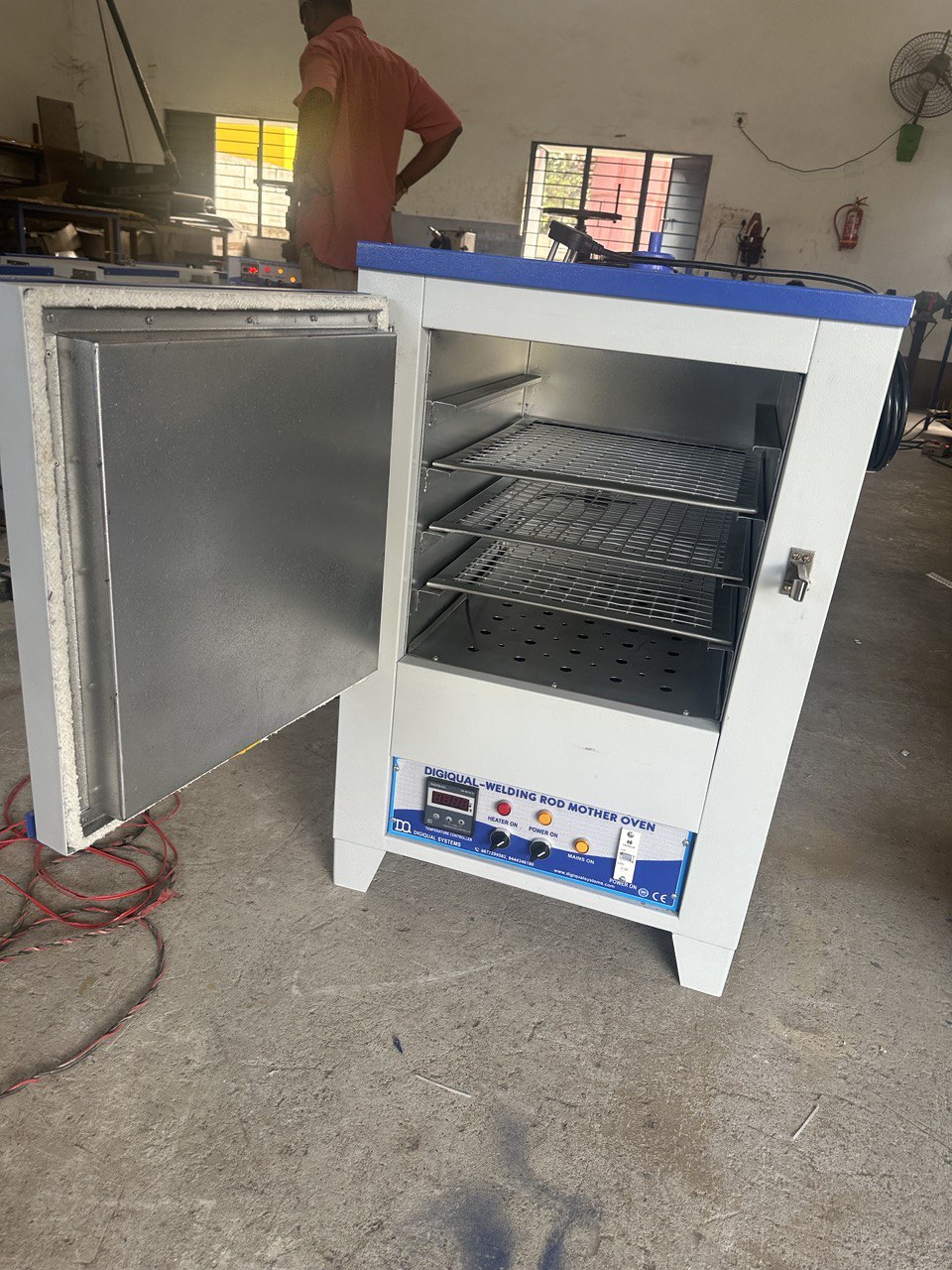

Welding Electrode Drying Mother Oven
We offers more than 10 models of Welding Electrode Drying Mother Oven which is also called Stationary ovens. With different size, capacities and features some use for holding some use for drying and baking process. Stationary Electrode Ovens means a oven which is fixed at one place which cannot move easily. It is used to preheat the electrode after opening it from box. Like low hydrogen electrode it required 250-300 Deg C for re baking atleast for 1 hour before it use. Temperature and heating time may vary from electrode to electrode.
| Technical Specification | ||
|---|---|---|
| Model No | DQ-WMO-01 | |
| Electrode capacity | 50 Kg {110 Lbs} | |
| Voltage | 110, 220 ,480 {Standard} | |
| Wattage | 4500 watts | |
| Temperature range | 250 Deg C & 400 Deg C | |
| Thermostat | Digital | |
| Temperature controller | Yes | |

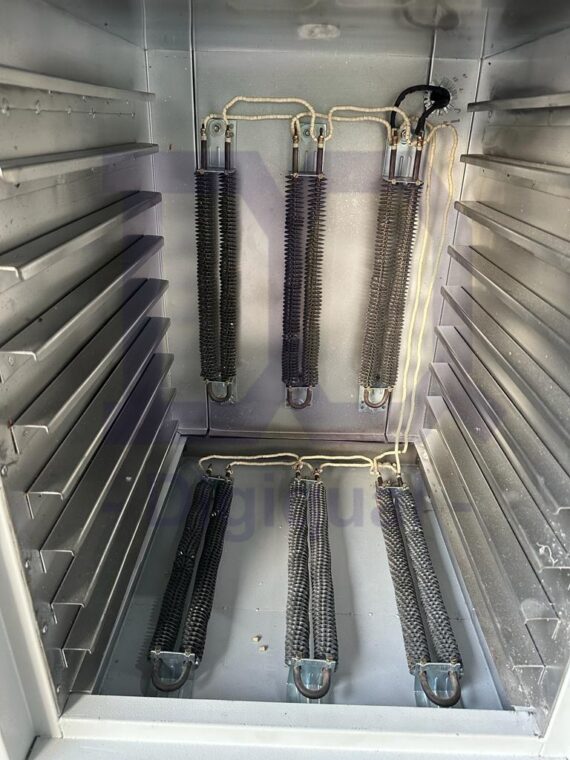

| Heating element | SS Tubular | |
| Insulation | 100 mm Ceramic Wool | |
| Inner Chamber {mm} | 480 x 480 x 480 | |

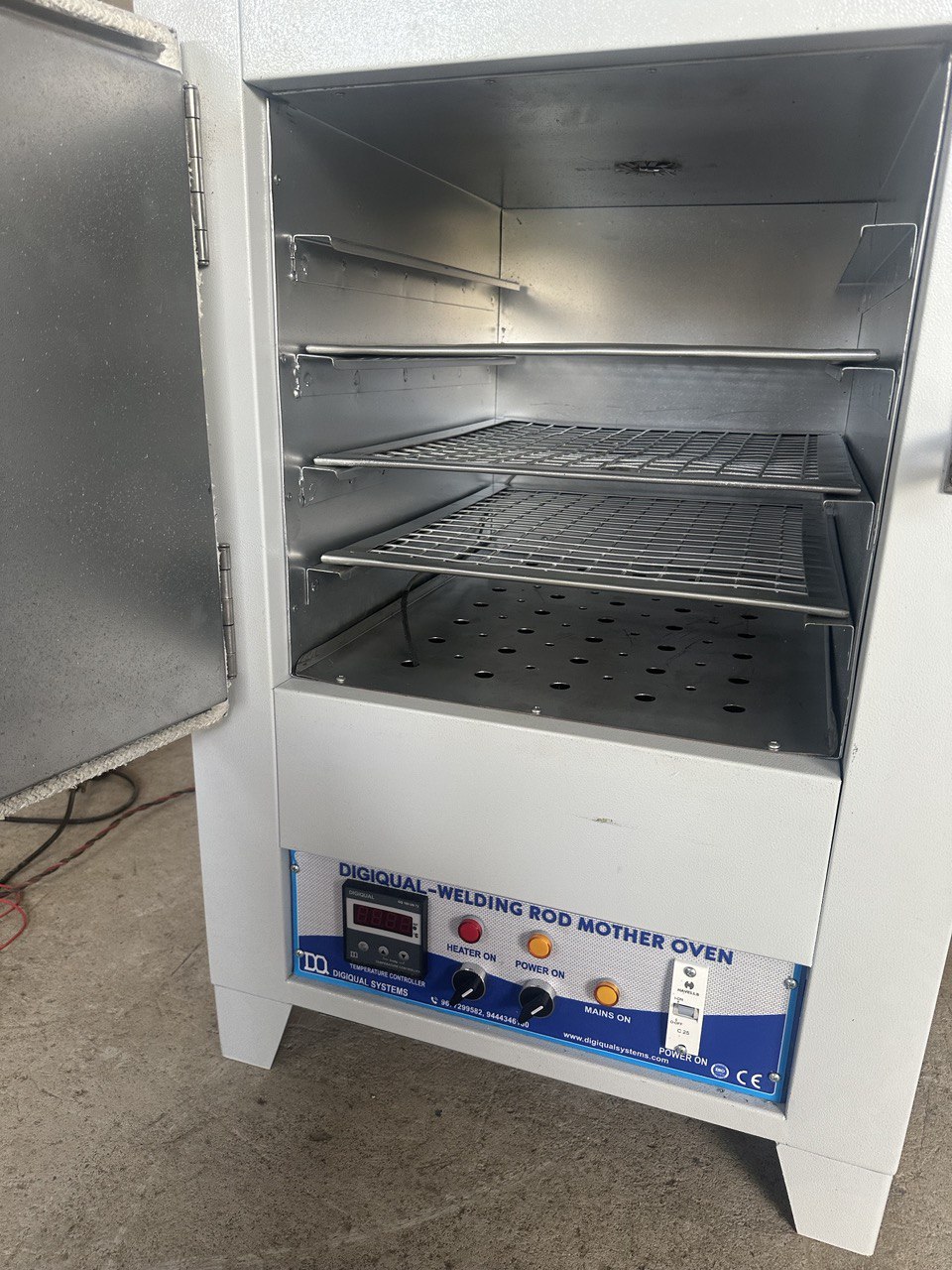

| Trays | 5 | |
| Body | Mild Steel / Stainless Steel | |
| Light indicator | Yes | |
| Air circulation | Natural Convection | |
| Color outer side | Epoxy Coating | |
| Color inner side | Heat resistant aluminium paint | |
| Shape | Square | |
| Handle | Fix Handle | |
| Net Weight | 75Kg | |
