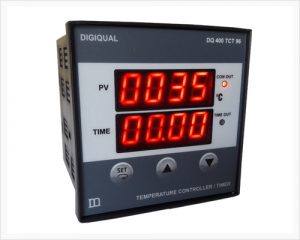

Digital Temperature Controller cum Timer
Digiqual Manufacturers of Digital Temperature Controller Timer Model : DQ 400 TCT 72
| Specifications For Digital Temperature Controller cum Timer | |
|---|---|
| Model No | DQ 400 TCT 72 |
| Sizes Available | 72 x 72 x 110 mm. |
| Inputs | Pt-100(DIN) or J / K Thermocouple |
| Temp.Hysteresis | 01~10°C |
| Display | 4 + 4 Digits , 0.56″, Red LED. |
| Control | On-Off |
| Timing Direction | Down counting |
| Reset | Available through front key |
| Soak Time | 0~999 min. |
| Control O/P | Relay 1C/0, 5A/1 resistive timer O/P Relay 1C/O, 5A/1 resistive and +12VDC for Buzzer |
| Alarm Acknowledge | through front key |
| Supply | 230 VAc.±10%50 / 60Hz |
| Range | 0~1200°C(Depending on input) |
