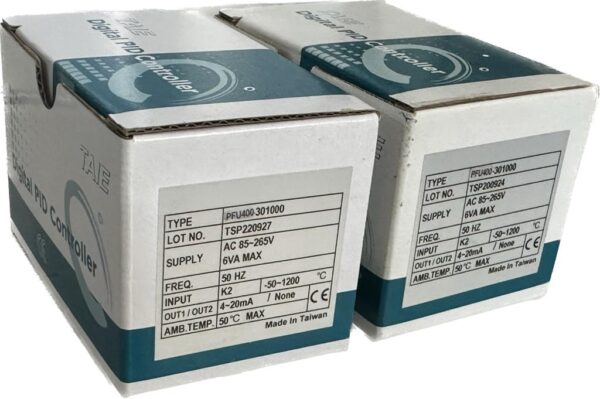

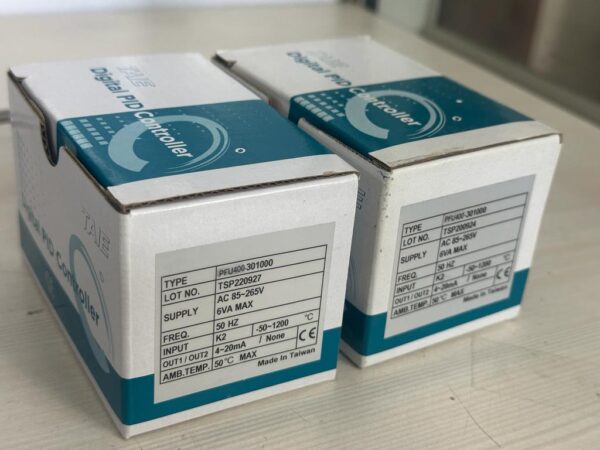

DIGIQUAL is highly esteemed in offering TAIE Digital PID Controller to the clients. This product is known in the market for best performance and long operational life. Offered range is efficient in calculating the error value within various industrial control systems. TAIE Digital PID Controller is available in various specifications to the esteemed clients.
Specifications For Programmable Temperature Controller
Model No
PFU 400 301000
Sizes Available
48 x 48, 72 x 72, 96 x 96 In mm
Inputs
TC, RTD, Linear (mA / V / mV) sensor input
Control Action
PID
Auto Tuning
Provided.
Programs
Non Programmable / Programmable RAMP/SOAK Function and has 2 Patterns with 8 segments to elevate or decrease Temperature. 16 Segments in Total.
Display
Dual 4+ 4 Digits 7,Segmented Red LED, PV & SV
Control O/P
6 A, 2 NO, 2 NC
Setting
Individual High Alarm & Low Alarm Setting
Accuracy
display input accuracy is ±0.2%
Input Sampling Time.
Input Sampling time is 250 ms
Output
Relay /,Buzzer.
Zero Correction
Through Front Keys
Supply
90 -230 VAC. ±10%, 50 / 60Hz
Range
0~1800°C (Depending on input)
Features:
TAIE PID Controller : Optimum operation.
TAIE PID Controller : Accurate dimension.
TAIE PID Controller : Maintenance free.
TAIE PID Controller : Non Programmable / Programmable RAMP/SOAK Function and has 2 Patterns with 8 segments to elevate or decrease Temperature. 16 Segments in Total.
TAIE PID Controller : Fuzzy Logic to avoid over shooting of Tempereture.
TAIE PID Controller : Wait Option (Avoid jumping in to next segment without reaching the set tempereture in the present segment in Programmable Controllers)
TAIE PID Controller : Power Failiure Option (Restarts at the same segment after power failiure)
TAIE PID Controller : MODBUS RS 485 or ReTransmission Output for PC Connectivity control and Recording(Optional)
TAIE PID Controller : Alarm Function.
TAIE PID Controller : Auto Tuning.
TAIE PID Controller : High Light LED Dual Display.
TAIE PID Controller : Universal Input.
TAIE PID Controller : Available with Relay / SSR / 4 ~ 20 Ma Outputs.
TAIE PID Controller : Available Sizes(mm): 48 x 48, 72 x 72, 96 x 96.
Other information:

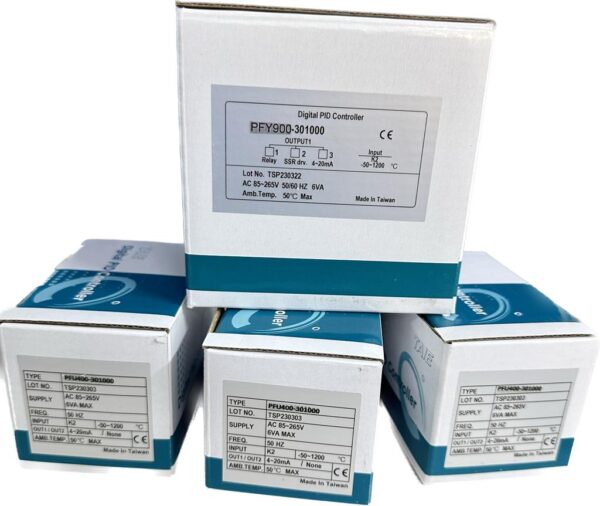

FU-series Digital Controller are Single loop TAIE PID Controllers, which are Suitable for various Industrial Process Controls Temperature Control is one of the Main Applications. PFY series added the “SV RAMP / SOAK Programmable” Function to FY series, all other Functions is the same with FU series. There are 16 Segments of RAMP / SOAK in 2 Patterns for Programming
New Function:
4-digits 8888 LED 7-Segment Display
The Upper display is PV (process value), and the Lower display is SV (set value) display input accuracy is ±0.2%
Input sampling time is 250 ms build in Auto-Tuning (AT) function can be used to get optimize TAIE PID value automatically
