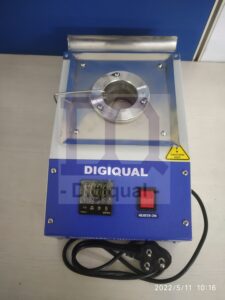

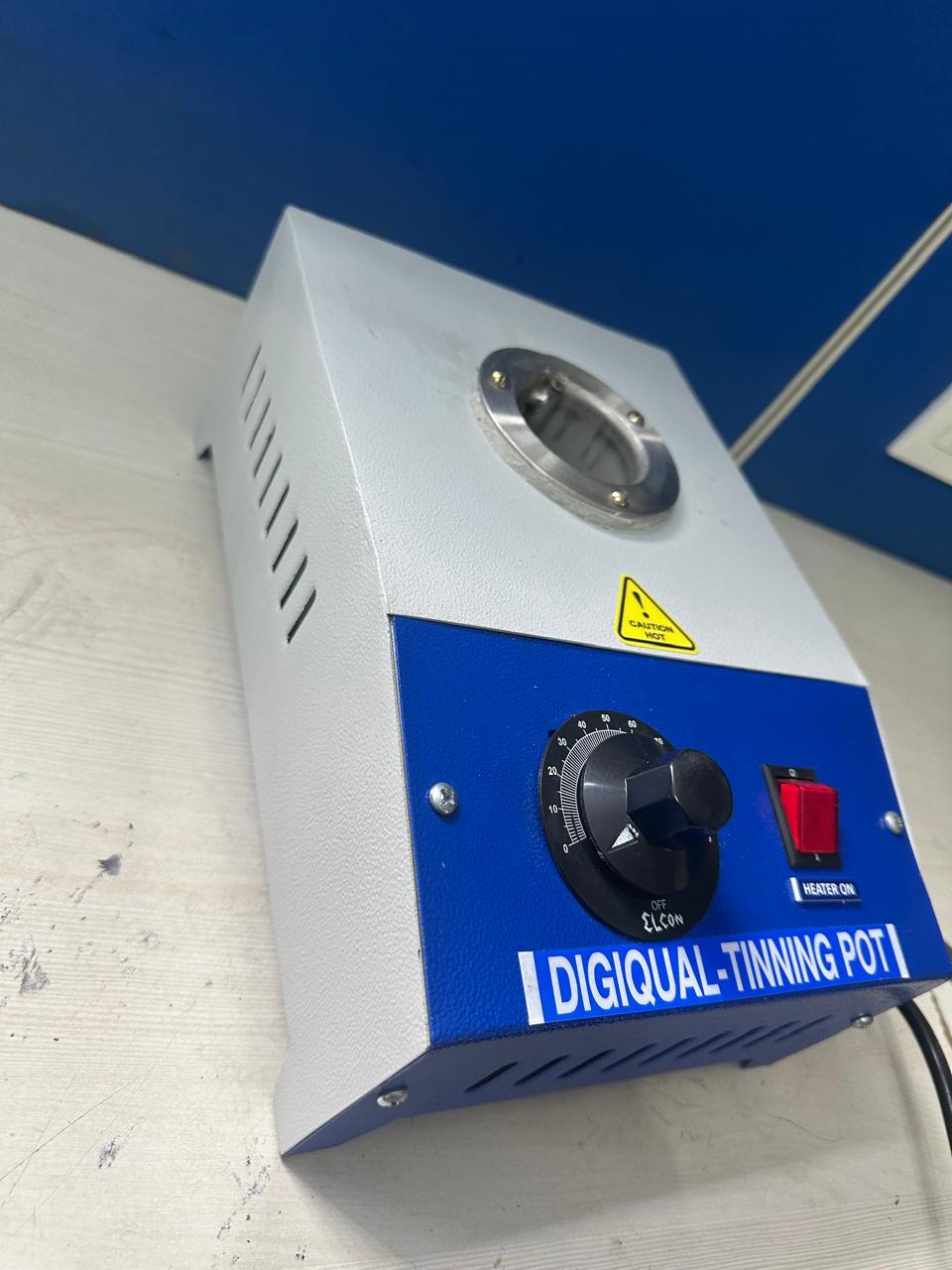

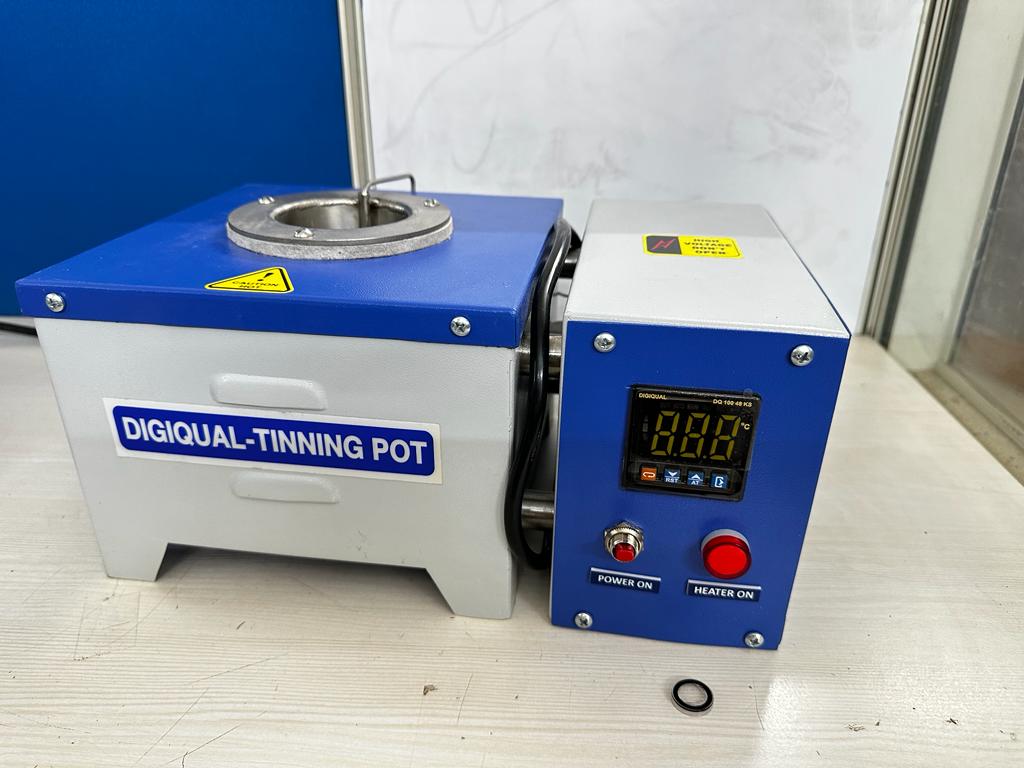

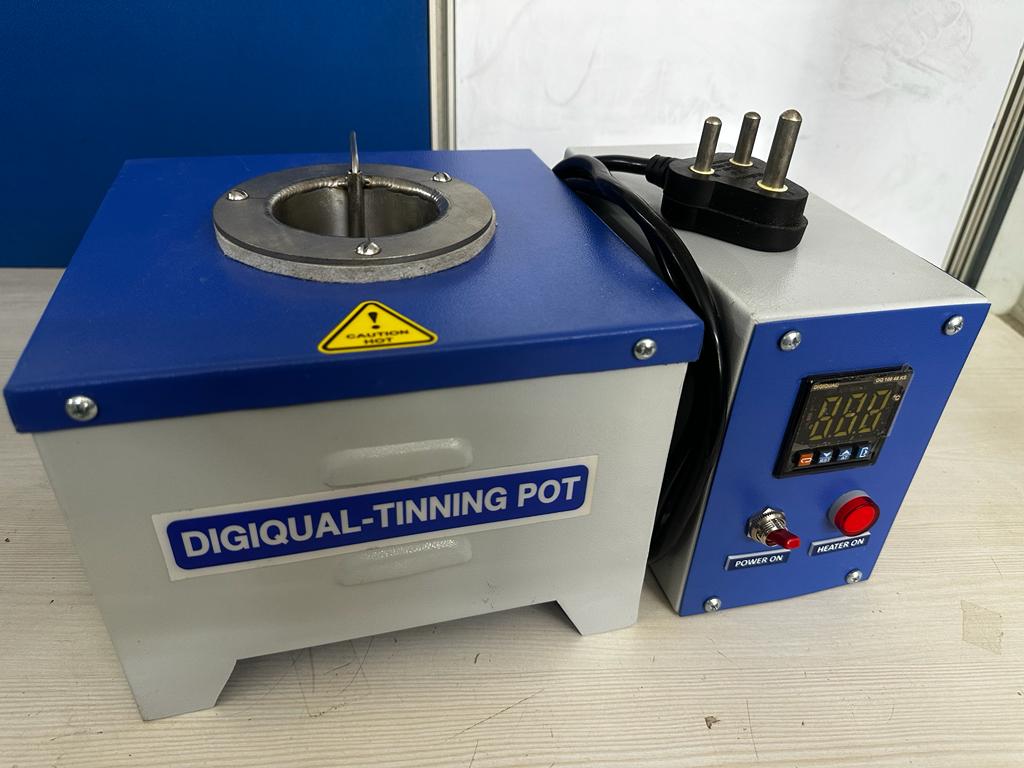

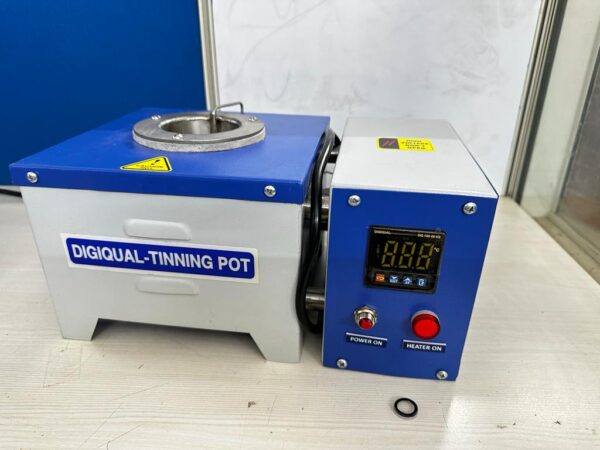

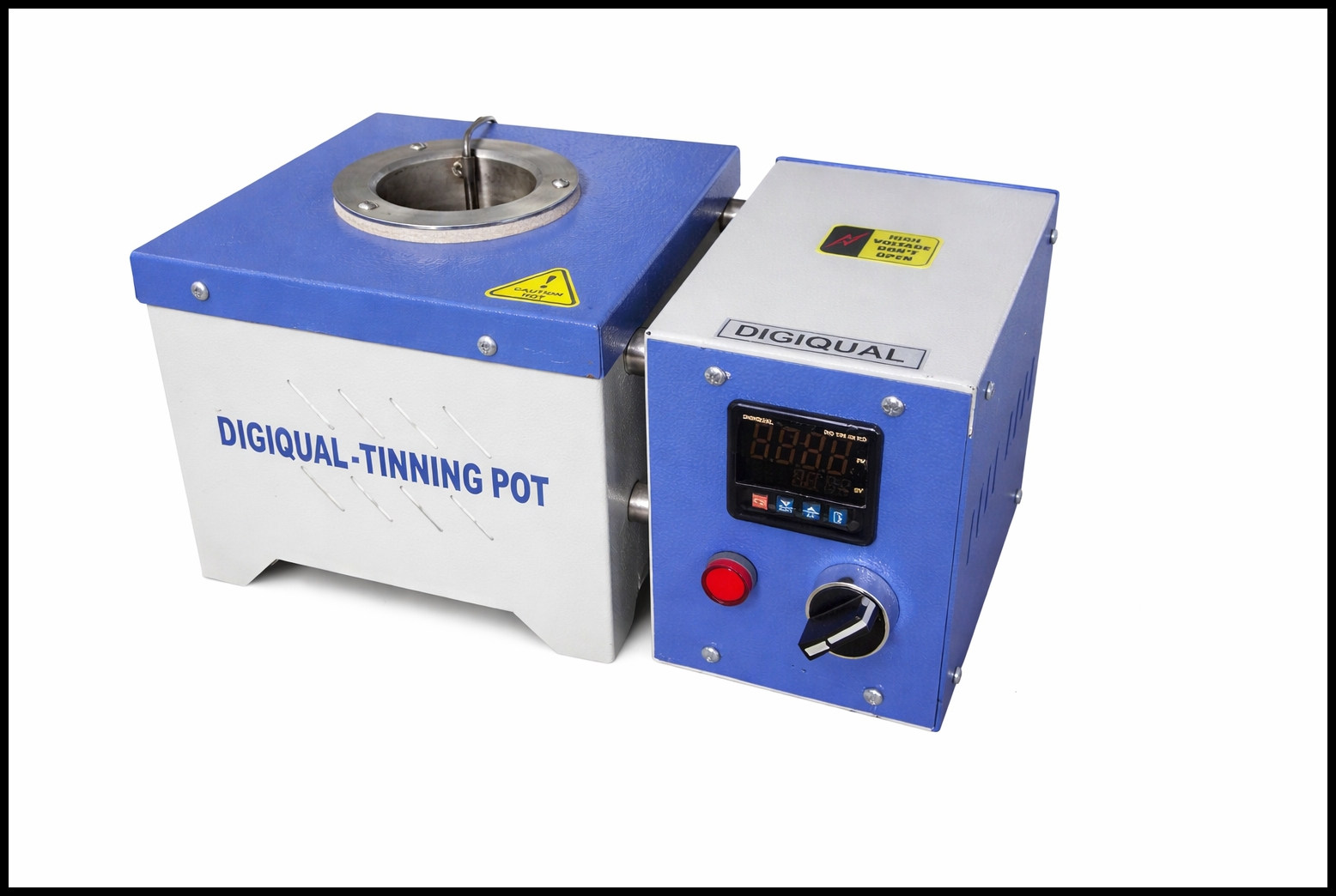

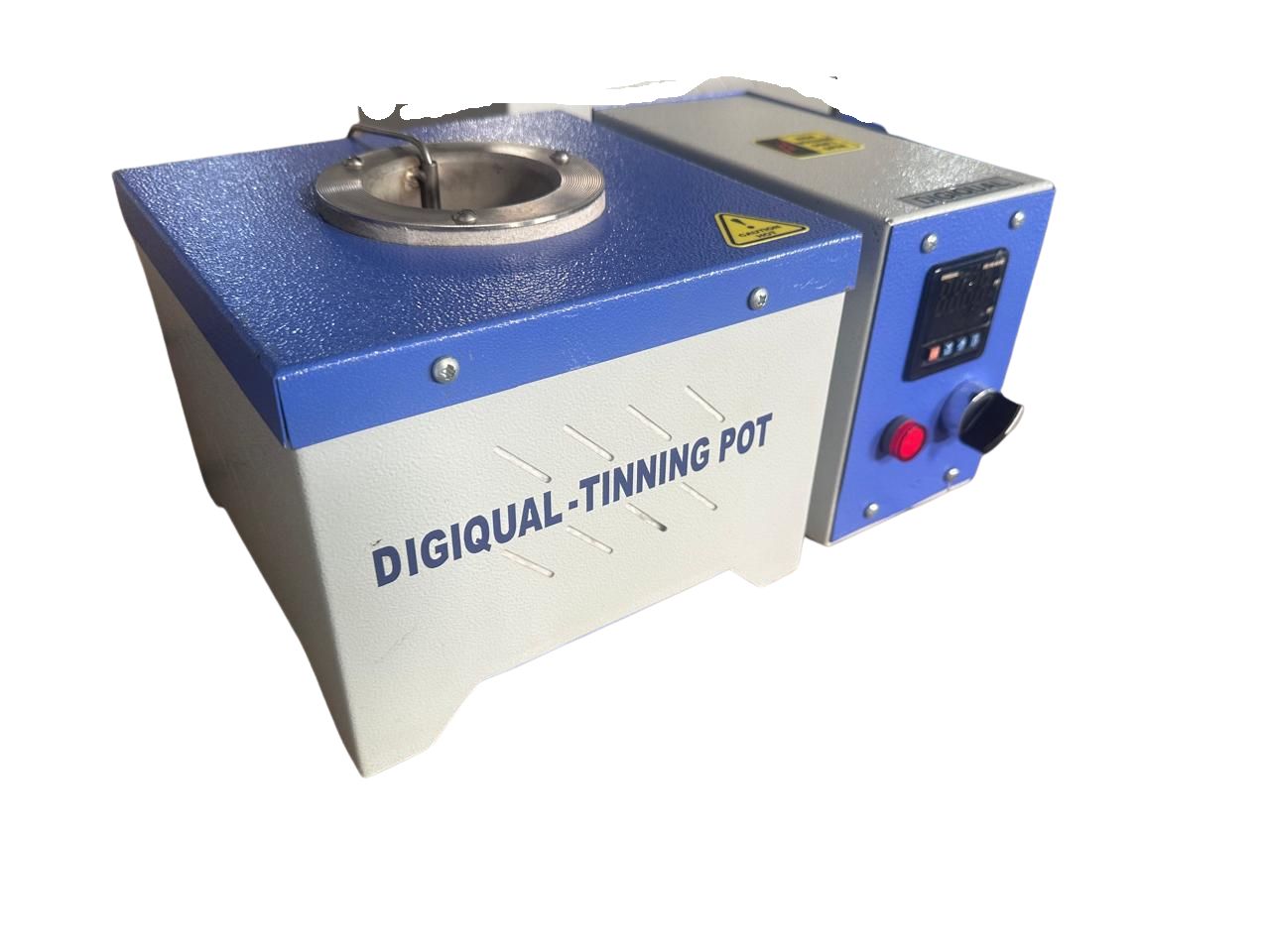

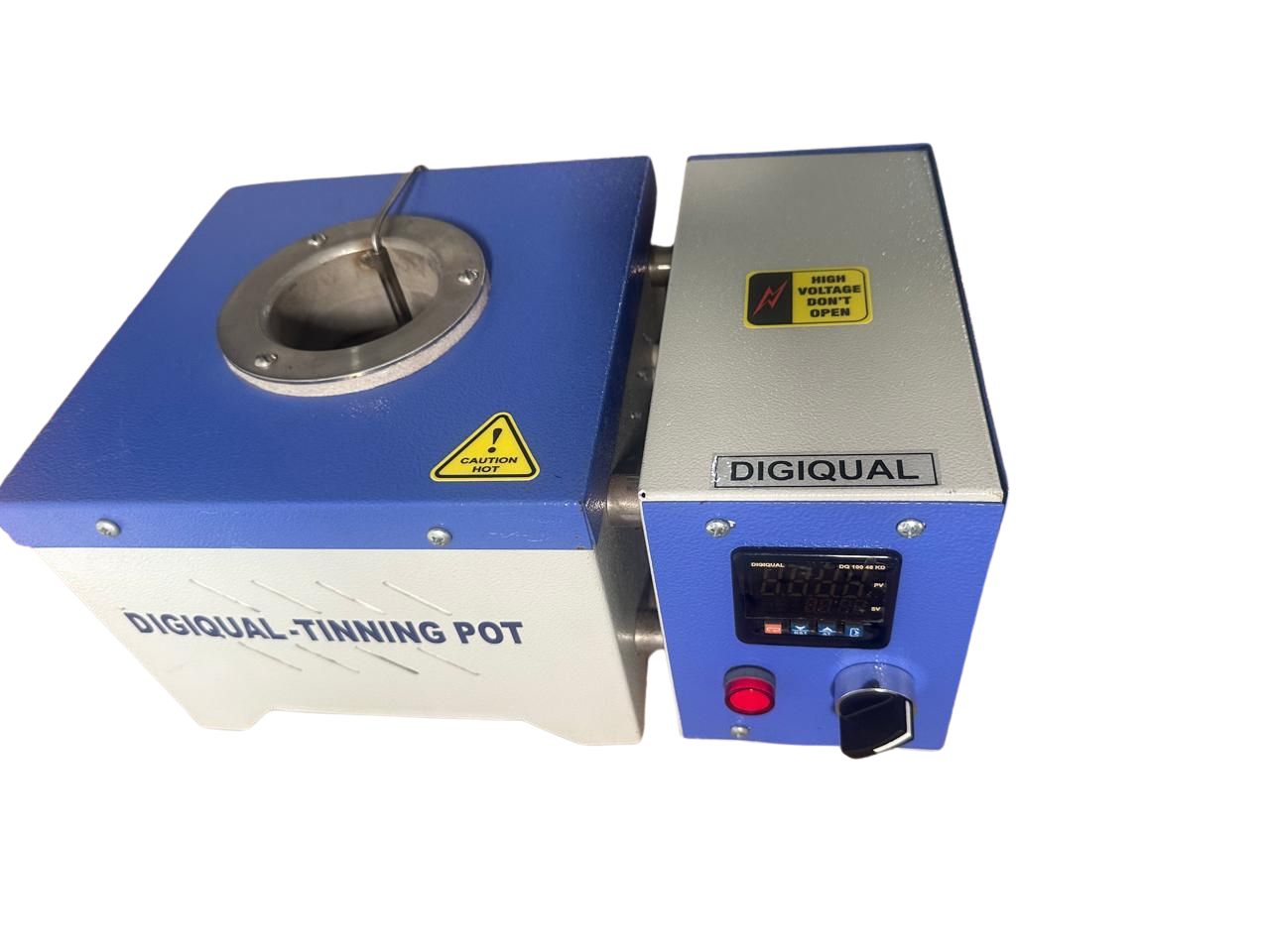

Cylindrical Soldering Pot
Digiqual systems is an Soldering Pot, Tinning Pot , PCB Soldering Pot Manufacturer, supplier and exporter in India, Chennai Digiqual Systems Manufacturers Cylindrical Tinning Pot , Rectangular Tinning Pot , PCB Soldering Machine, Lead Melting Bath , Transformer Tinning Machine.

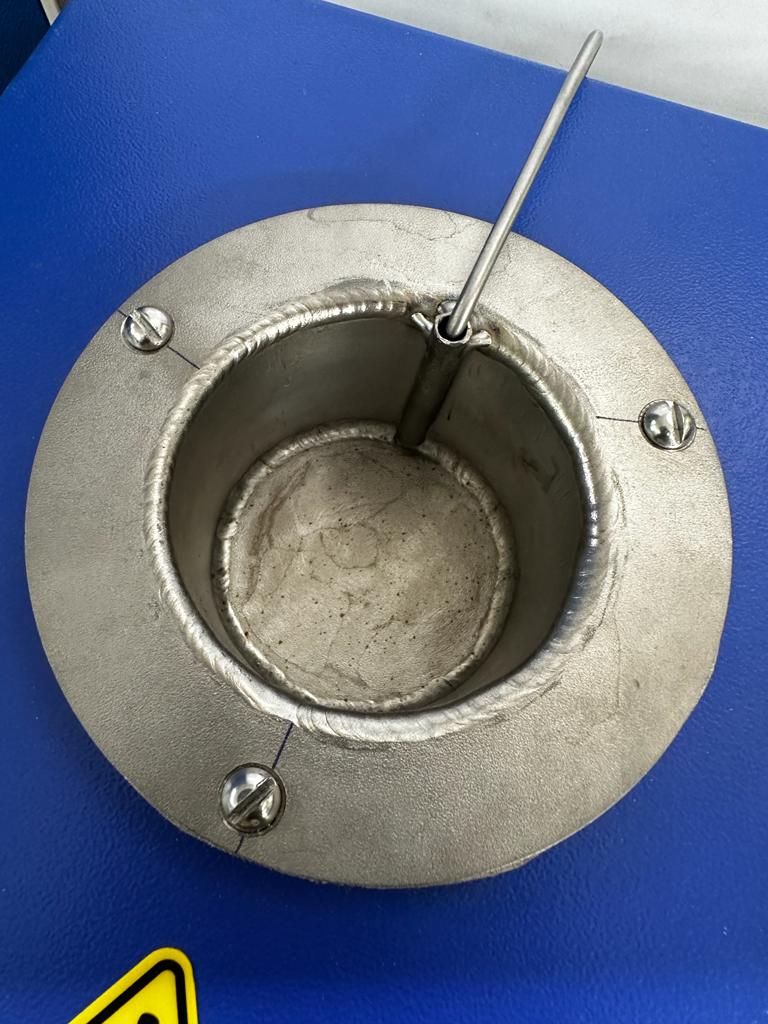

Digiqual Manufactures Cylindrical Soldering Pot ,Tinning Pot / Dip soldering Machine. Outer chamber Made of Mild Steel Powder Coated. Inner Chamber ( Pot ) is Fabricated out of Specially Procured SS 316 Material or Titanium to With stand Metal & High Temperature.
Heating Element is Developed out of Ceramic Type with Nicrome Heater for High Temperature & Long Life. Space Between Pot & Chamber is insulated with High alumina Ceramic Blankets which is used for Furnaces. By using these Blanket Insulation Digiqual Tinning Pots are of Long Life , Durable, heavy Duty.
Application
| Technical Specifications | |
|---|---|
| Pot MOC | SS 316 or Titanium of 3mm Wall Thickness |
| Outer | MS Powder Coating |
| Heating Element | Ceramic Type Heater |
| Watts | 500 to 1500 W according to size. |
| Temp. Range | Maximum 350* C |
| Temperature Controller | Digital PID Temp Controller |
| Thermocouple | Mineral Insulated 3 mm dia Thermocouple for Long Life. |
| Accuracy | Mineral Insulated 3 mm dia Thermocouple for Long Life. |
| Available Sizes | Max Temp | Wattage |
|---|---|---|
| 50 x 50 mm | 350 * C | 400 W |
| 50 x 75 mm | 350 * C | 500 W |
| 110 x 50 mm | 350 * C | 700 W |
| 110 x 75 mm | 350* C | 800 W |
- Wire Tinning
- Transformer Tinning
- Enamel Removing
- Lead Coating in Lugs.
- For 60 / 40 Lead Go for SS 316 Pot.
- For ROHS Lead Go for Titanium Pot.
