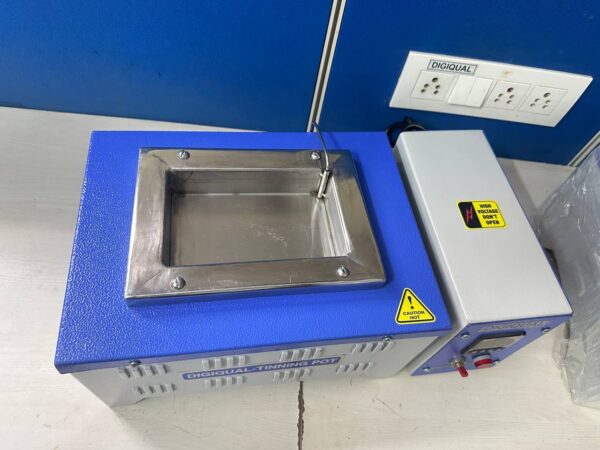

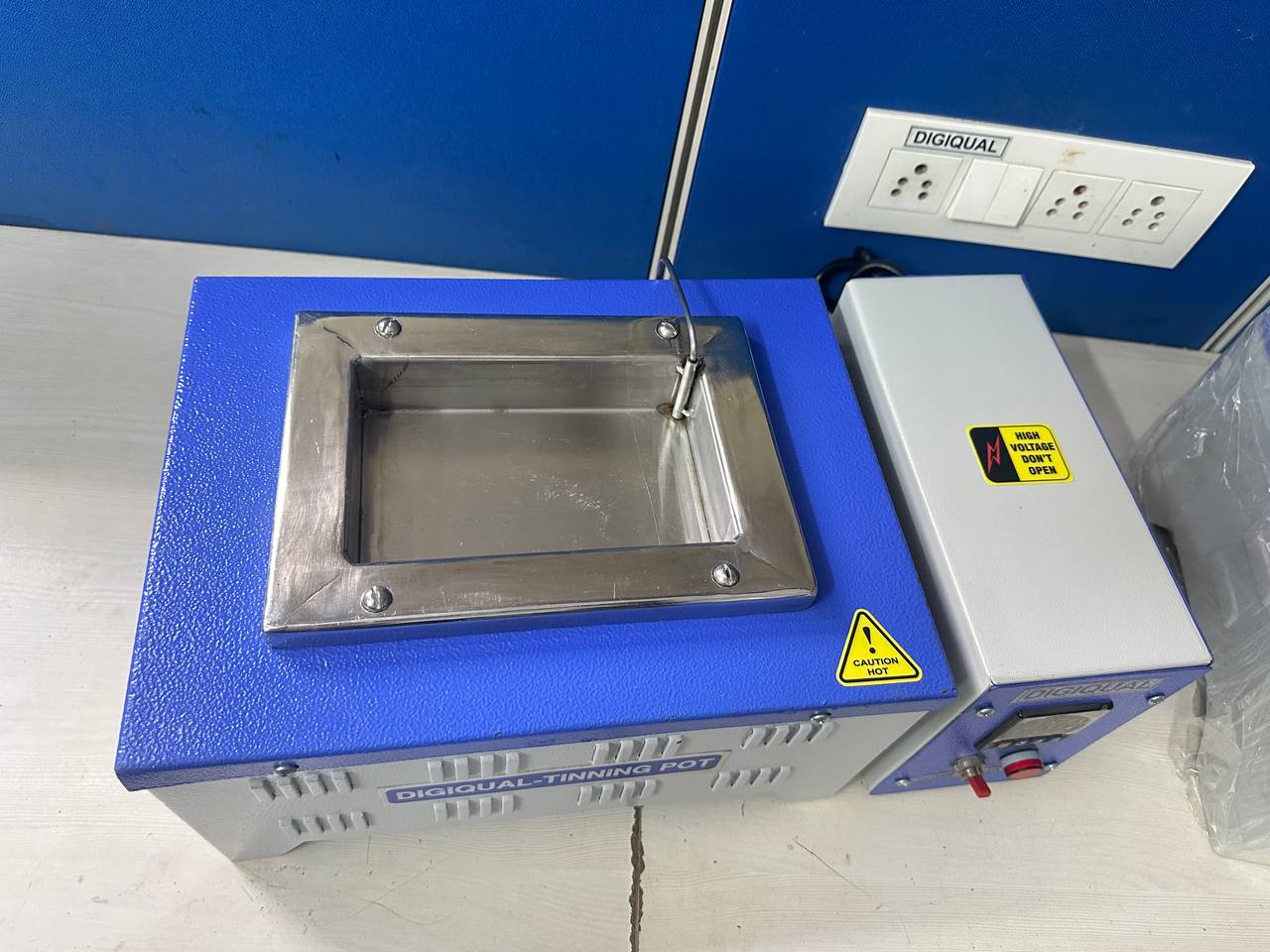

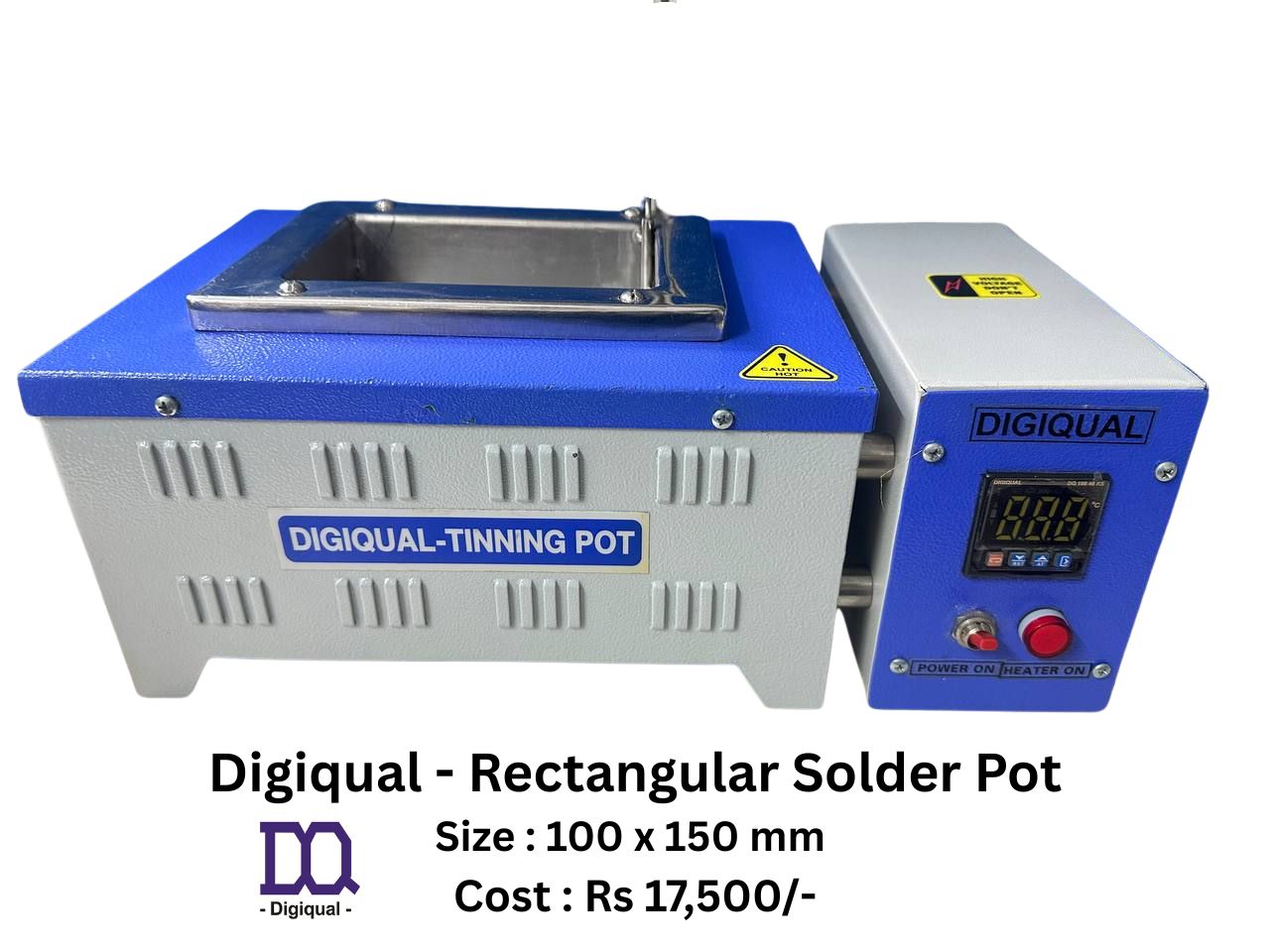

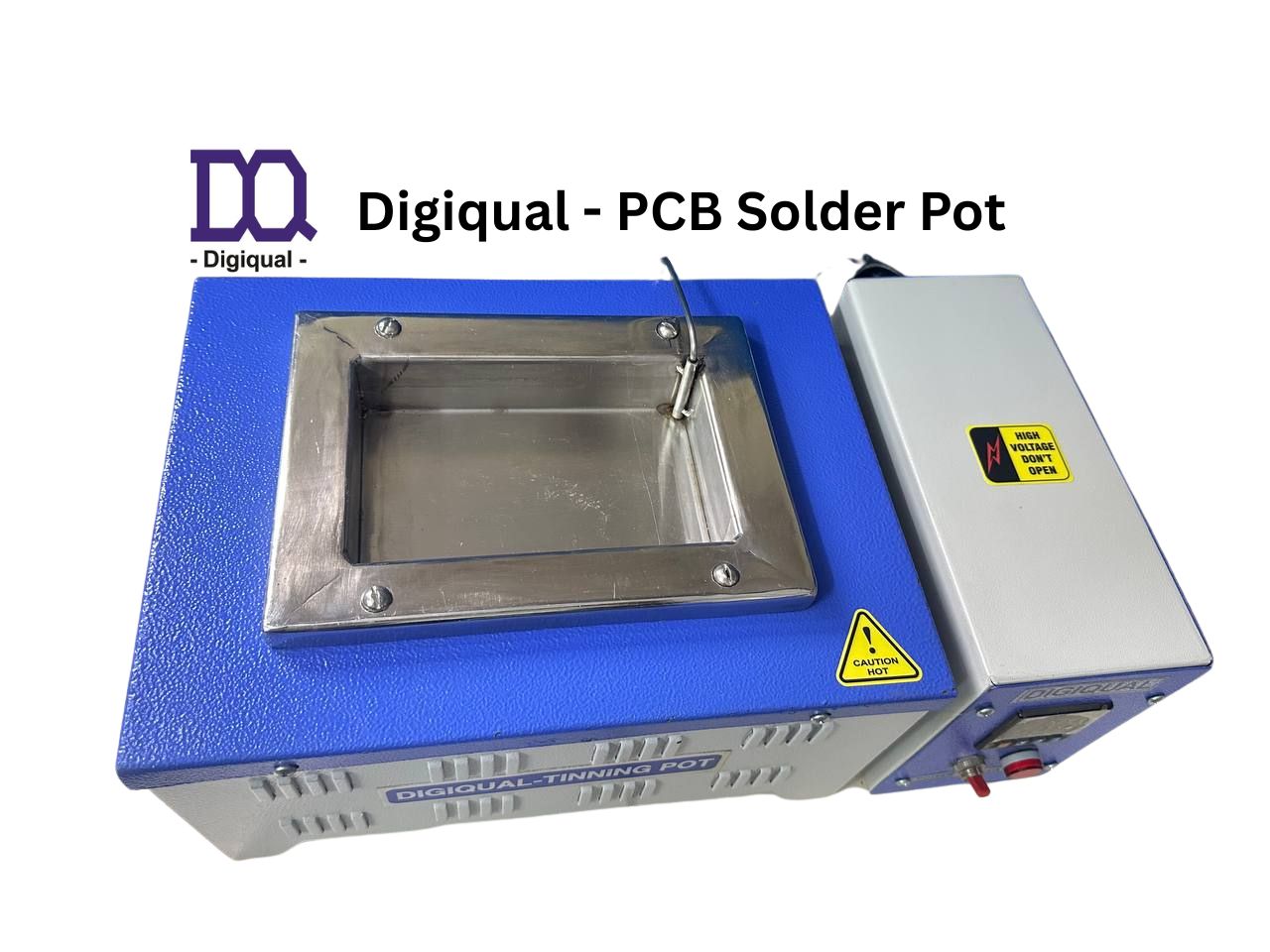

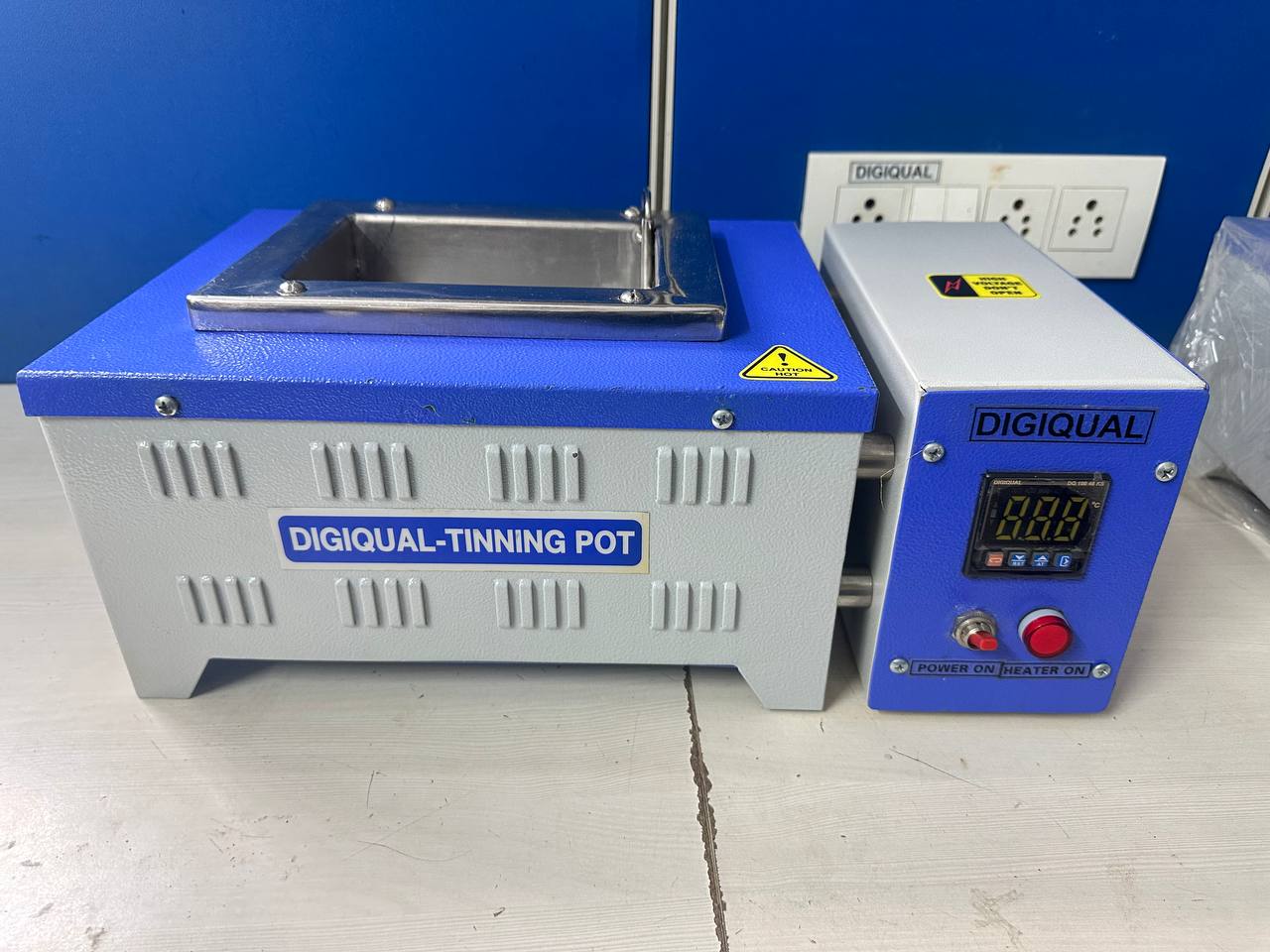

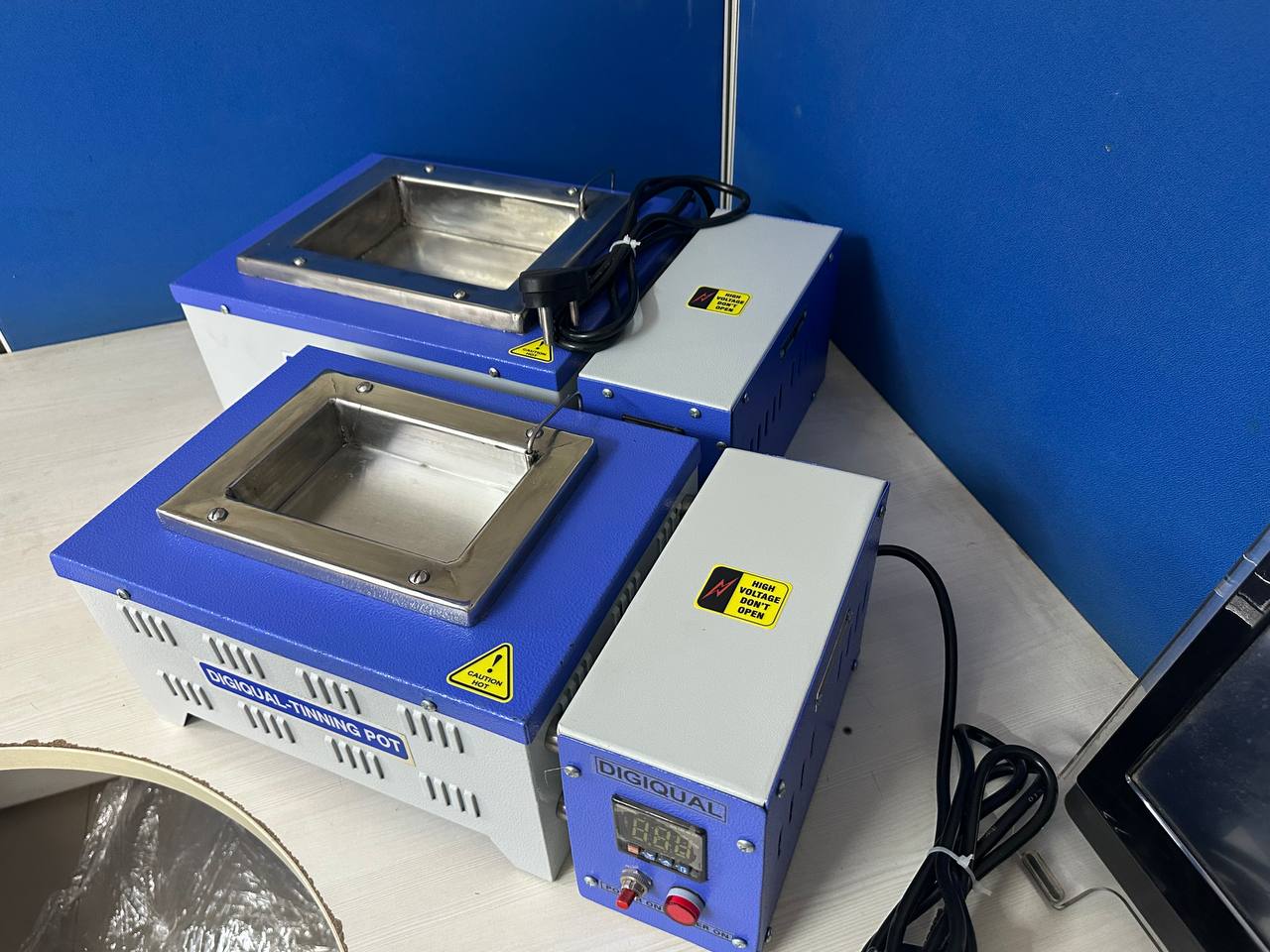

Rectangular Tinning Pot / PCB Soldering Machine
Digiqual manufactures PCB soldering machine, rectangular tinning Pot / Dip soldering machine. Outer chamber made of mild steel powder coated. Inner Chamber ( Pot ) is fabricated out of specially procured SS 316 material or titanium to with stand metal & high temperature.
Heating Element is developed out of ceramic type with Nicrome Heater for high temperature & long life. Space between Pot & Chamber is insulated with high alumina ceramic blankets which is used for Furnaces. By using these blanket insulation Digiqual tinning pots are of long life, durable and heavy duty.
| Technical Specifications | |
|---|---|
| Pot MOC | SS 316 or Titanium of 3mm Wall Thickness |
| Outer | MS Powder Coating |
| Heating Element | Ceramic Type Heater |
| Watts | 500 to 1500 W according to size |
| Temp Range | Maximum 350* C |
| Temperature Controller | Digital PID Temp Controller |
| Thermocouple | Mineral Insulated 3 mm dia Thermocouple for Long Life |
| Accuracy | +/- 1 * C |
| Available Sizes | Max Temp | Wattage |
|---|---|---|
| 100 x 150 x 50 mm | 350 * C | 750 W |
| 150 x 150 x 50 mm | 350 * C | 750 W |
| 200 x 150 x 50 mm | 350 * C | 1000 W |
| 200 x 200 x 50 mm | 350 * C | 1250 W |
| 200 x 250 x 50 mm | 350 * C | 1500 W |
| 300 x 300 x 50 mm | 350 * C | 2000 W |
- PCB Soldering
- PCB Mount Transformer Removing
- De-soldering components in PCB.
- For 60 / 40 Lead Go for SS 316 Pot.
- For ROHS Lead Go for Titanium Pot.
